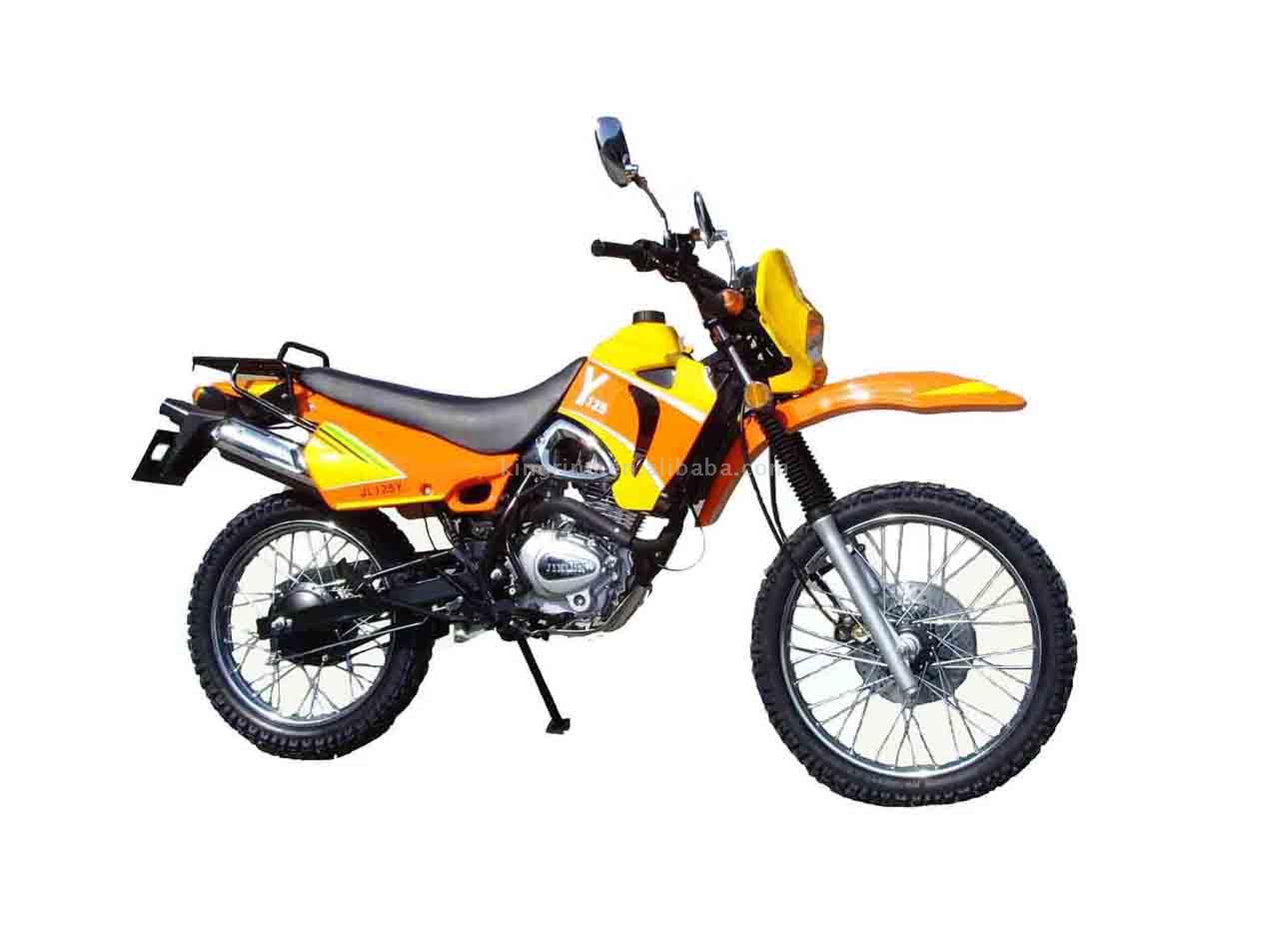

Model: JL200Y

Specifications:

Dimension (mm):2140x840x1200

Wheelbase(mm): 1350mm

Max. Load Mass(kg): 150kg

Max. Speed(km/h):85km/h

Tire:Front: 2.75-21/200KPa

      Rear:  4.10-18/280KPa

Rim Type:Spoke/Alloy

Driving Mode: By Chain

Brake Mode: Front: Disc     Rear: Drum

Brake Operation Mode: Front(By Hand);Rear(By Foot)

Engine:169FML

Engine Type: Single Cylinder     Four Stroke

Cylinder Type:Horizontal

Bore X Stroke(mm): Dia.69 X 54(mm)

Piston Displacement:198cc

Compression Ratio:9.2:1
